Middlewares

Quick Start

Method	Order	Use Case	Configuration
Entrypoint	Ordered	Global middlewares	config.yml
Middleware Compose	Ordered	Reusable configs	config/middlewares/*.yml
Docker Labels	Unordered*	Per-route	Container labels
Route Files	Unordered*	Per-route	Route files

Set priority for unordered methods when order matters.

Basic Example

# Global middleware (entrypoint)
entrypoint:
  middlewares:
    - use: real_ip
      header: X-Real-IP
      from: [127.0.0.1, 192.168.0.0/16]

# Per-service (Docker labels)
services:
  app:
    labels:
      proxy.myapp.middlewares.redirect_http.priority: 1
      proxy.myapp.middlewares.cidr_whitelist.priority: 2
      proxy.myapp.middlewares.cidr_whitelist.allow: 127.0.0.1, 192.168.0.0/16

Naming Convention

Middleware names and options are case-insensitive: redirectHTTP, redirect_http, RedirectHttp are equivalent.

Applying Middlewares

Entrypoint & Middleware Compose

# Entrypoint (config.yml)
entrypoint:
  middlewares:
    - use: CloudflareRealIP
    - use: CIDRWhitelist
      allow:
        - 127.0.0.1
        - 223.0.0.0/8

# Middleware Compose (config/middlewares/whitelist.yml)
myWhitelist:
  - use: CloudflareRealIP
  - use: CIDRWhitelist
    allow:
      - 127.0.0.1
      - 223.0.0.0/8

Docker Labels

# Single line
proxy.#1.middlewares.{name}.{option}: { value }

# YAML block
proxy.#1.middlewares.{name}: |
  {option}: {value}

Route Files

myapp:
  middlewares:
    { name }:
      { option }: { value }

Reusing Compositions

# Docker labels
proxy.#1.middlewares.myWhitelist@file:

# Route file
myapp:
  middlewares:
    myWhitelist@file:

# Entrypoint
entrypoint:
  middlewares:
    - use: myWhitelist@file

Bypass Rules

middleware:
  bypass:
    - route myapp & path glob(/api/*)
    - remote 192.168.0.0/16
    - header User-Agent glob(*bot*)

See Rules syntax for complete documentation.

Middleware Reference

Authentication & Security

Name	Purpose
oidc	OpenID Connect authentication
hcaptcha	Bot protection with hCaptcha
forward_auth	External auth service delegation

OIDC

Option	Description	Default
allowed_users	Allowed users	GODOXY_OIDC_ALLOWED_USERS
allowed_groups	Allowed groups	GODOXY_OIDC_ALLOWED_GROUPS
client_id	Client ID	GODOXY_OIDC_CLIENT_ID
client_secret	Client secret	GODOXY_OIDC_CLIENT_SECRET
scope	OAuth scope	GODOXY_OIDC_SCOPE

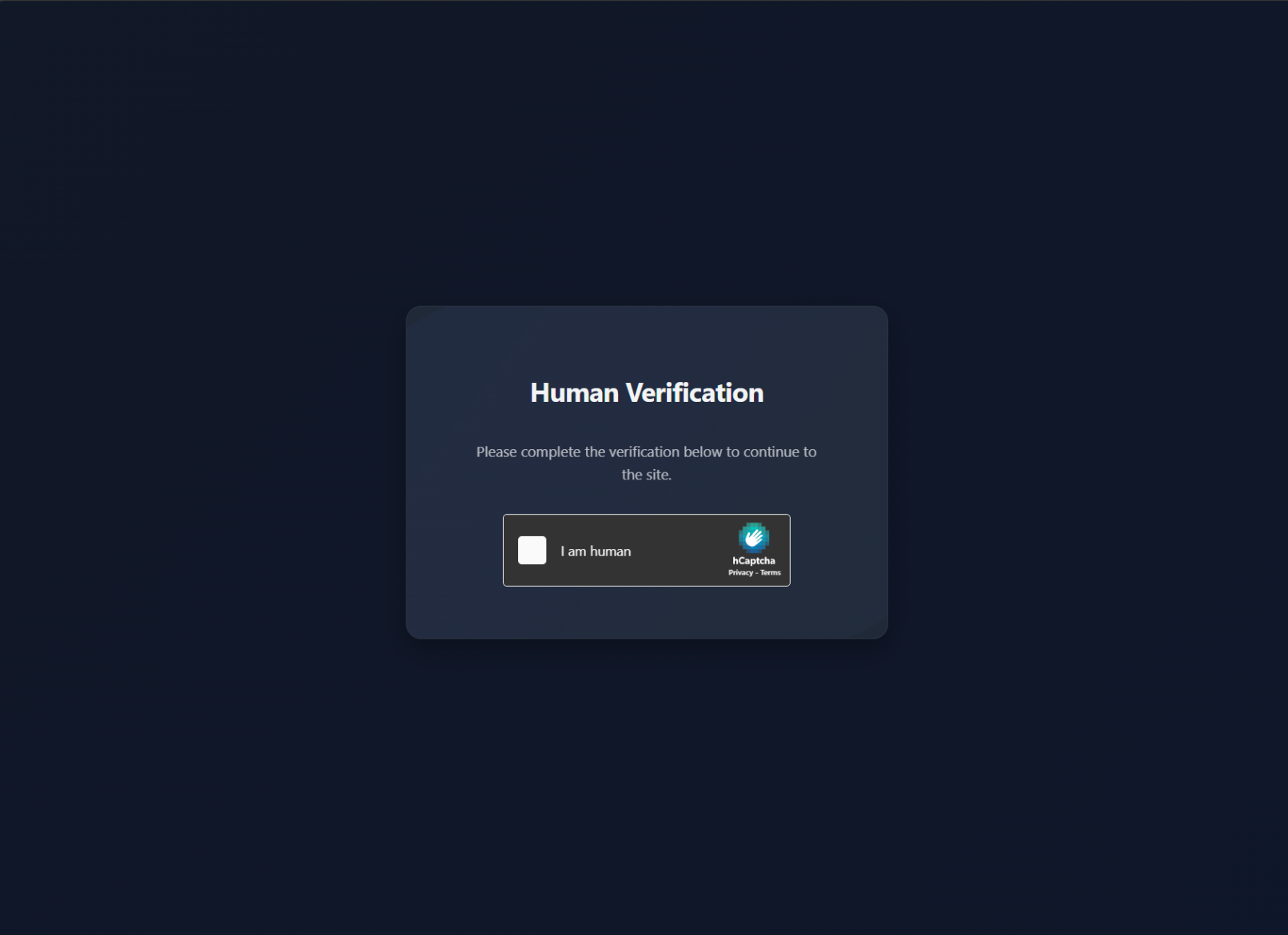

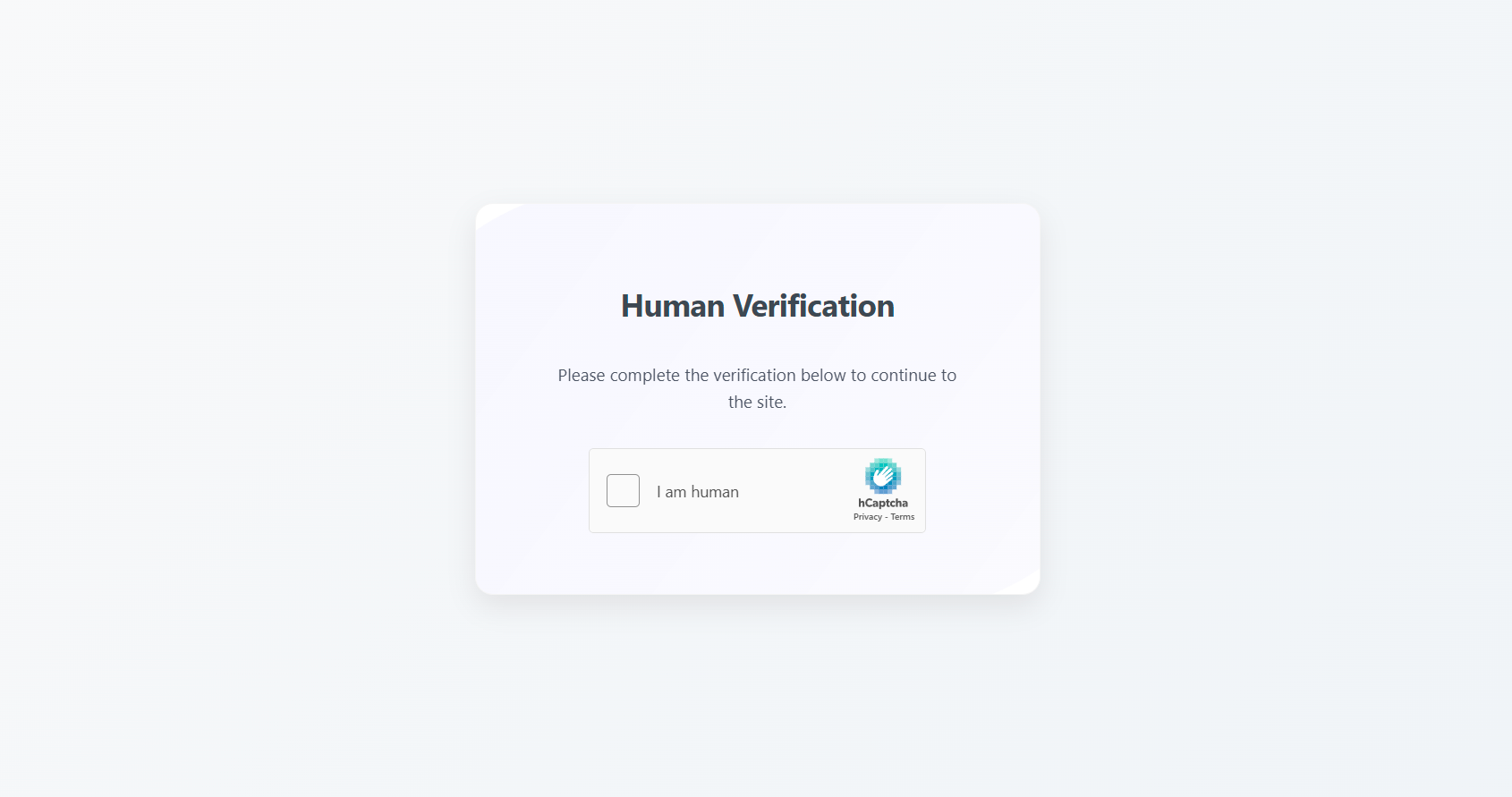

hCaptcha

Option	Description	Default	Required
site_key	Site key	-	Yes
secret_key	Secret key	-	Yes
session_expiry	Session expiry	24h	No

Users solve captcha once per session.

Forward Auth

Option	Description	Default
route	Auth server route	tinyauth
auth_endpoint	Auth endpoint path	/api/auth/traefik
headers	Headers to forward	["Remote-User", "Remote-Name", "Remote-Email", "Remote-Groups"]

Behavior:

1. Sends GET request to route origin + auth_endpoint
2. Populates X-Forwarded-* headers
3. Non-2xx/3xx: Returns auth response to client
4. 2xx: Copies headers and forwards upstream

# Docker labels
proxy.myapp.middlewares.forward_auth: |
  route: tinyauth
  auth_endpoint: /api/auth/traefik
  headers: Remote-User, Remote-Name, Remote-Email, Remote-Groups

IP Resolution

Name	Purpose
real_ip	Resolve client IP from proxy headers
cloudflare_real_ip	Cloudflare IP resolution for proxied/tunneled traffic

Real IP

Recommended for entrypoint - affects $remote_addr, $remote_host, logs, and CIDRWhitelist.

Option	Description	Default	Required
header	Real IP header	X-Real-IP	No
from	Trusted CIDRs/IPs	-	Yes
recursive	Recursive mode	true	No

Recursive Mode:

• true: First IP not in from list
• false: Last IP not in from list

Example: X-Forwarded-For: 1.2.3.4, 192.168.0.123, 10.0.0.123, from: 192.168.0.0/16, 10.0.0.1

Recursive	Result
true	1.2.3.4
false	10.0.0.123

Cloudflare Real IP

Preset values:

• header: CF-Connecting-IP
• from: Cloudflare IPs + all local IPs
• recursive: true

Access Control

Name	Purpose
cidr_whitelist	Allow/deny requests by IP range
rate_limit	Limit request rate per client

CIDR Whitelist

See Request-level access control for documentation.

Rate Limiter

Option	Description	Default	Required
average	Requests per period	-	Yes
burst	Max requests in period	-	Yes
periods	Time period format	1s	No

rate_limit:
  average: 10
  burst: 20
  periods: 1m

Traffic Control

Name	Purpose
redirect_http	Redirect HTTP to HTTPS
custom_error_pages	Customize error responses

Redirect HTTP

No configuration options.

Custom Error Pages

See Custom Error Pages for documentation.

Request/Response Modification

Name	Purpose
modify_request / request	Modify request headers and paths
modify_response / response	Modify response headers
hide_x_forwarded	Remove X-Forwarded-* headers
set_x_forwarded	Override X-Forwarded-* headers

Modify Request/Response

Option	Description	Default
set_headers	Replace headers	-
add_headers	Add headers	-
hide_headers	Remove headers	-
add_prefix	Path prefix	-

Supported Variables

Use $ prefix in YAML files, $$ in Docker Compose.

See Variables Reference down below.

Header Modification

# Set headers (replace)
proxy.myapp.middlewares.request.set_headers: |
  X-Custom: value1, value2
  X-Real-IP: $$remote_host

# Add headers (append)
proxy.myapp.middlewares.request.add_headers: |
  X-Custom: value1, value2

# Hide headers (remove)
proxy.myapp.middlewares.request.hide_headers: X-Real-IP, X-Forwarded-For

X-Forwarded Headers

# Hide X-Forwarded headers
proxy.myapp.middlewares.hide_x_forwarded:

# Set X-Forwarded headers (override instead of append)
proxy.myapp.middlewares.set_x_forwarded:

Content Modification

Name	Purpose
modify_html	Inject/replace HTML via CSS selectors
themed	Inject theme CSS into HTML

Modify HTML

Option	Description	Default
target	CSS selector	-
html	HTML to inject	-
replace	Replace mode	false

Behavior:

• Only processes text/html and application/xhtml+xml
• Append mode: modifies first matching element
• Replace mode: replaces all matching elements
• Gracefully handles errors

Supported Selectors: element (body), ID (#main), class (.container), attribute ([data-test='val'])

# Inject CSS into head
proxy.myapp.middlewares.modify_html: |
  target: head
  html: '<style>body { background: red; }</style>'

# Replace main content
proxy.myapp.middlewares.modify_html: |
  target: main
  html: '<section><h2>New</h2></section>'
  replace: true

Themed

Option	Description	Conflicts
theme	Preset theme	css
font_url	Font URL	-
font_family	Font name	-
css	Custom CSS	theme

Themes: dark, dark-grey, solarized-dark

app:
  middlewares:
    themed:
      theme: dark
      font_url: https://fonts.googleapis.com/css2?family=Inter:wght@400;700&display=swap
      font_family: Inter

Variables Reference

Category	Variable	Description
Request	req_method	HTTP method
	req_scheme	URL scheme
	req_host	Host without port
	req_port	Port number
	req_addr	Host:port
	req_path	URL path
	req_query	Query string
	req_url	Full URL
	req_uri	Encoded path?query
	req_content_type	Content-Type header
	req_content_length	Request body length
Client	remote_addr	Client IP
	remote_host	Client IP (parsed)
	remote_port	Client port
Response	resp_content_type	Response Content-Type
	resp_content_length	Response body length
	status_code	HTTP status
Upstream	upstream_name	Server alias
	upstream_scheme	Server scheme
	upstream_host	Server host
	upstream_port	Server port
	upstream_addr	Server address:port
	upstream_url	Full server URL
Dynamic	header(name)	Get header value
	resp_header(name)	Get response header
	arg(name)	Get query param

Examples

# Global middleware (config.yml)
entrypoint:
  middlewares:
    - use: cidr_whitelist
      allow:
        - 127.0.0.1
        - 10.0.0.0/16
    - use: modify_request
      set_headers:
        Host: api.openai.com

# Per-route (Docker labels)
proxy.#1.middlewares.cidr_whitelist.allow: |
  - 127.0.0.1
  - 10.0.0.0/16
proxy.#1.middlewares.oidc.bypass: |
  path glob(/identity/*) | path glob(/api/*) | path glob(/icons/*)

# OIDC with bypass (entrypoint)
entrypoint:
  middlewares:
    - use: oidc
      bypass:
        - route pocket-id
        - route immich & glob(path /api/*)
        - remote 127.0.0.1
        - remote 192.168.0.0/16
